Product Description

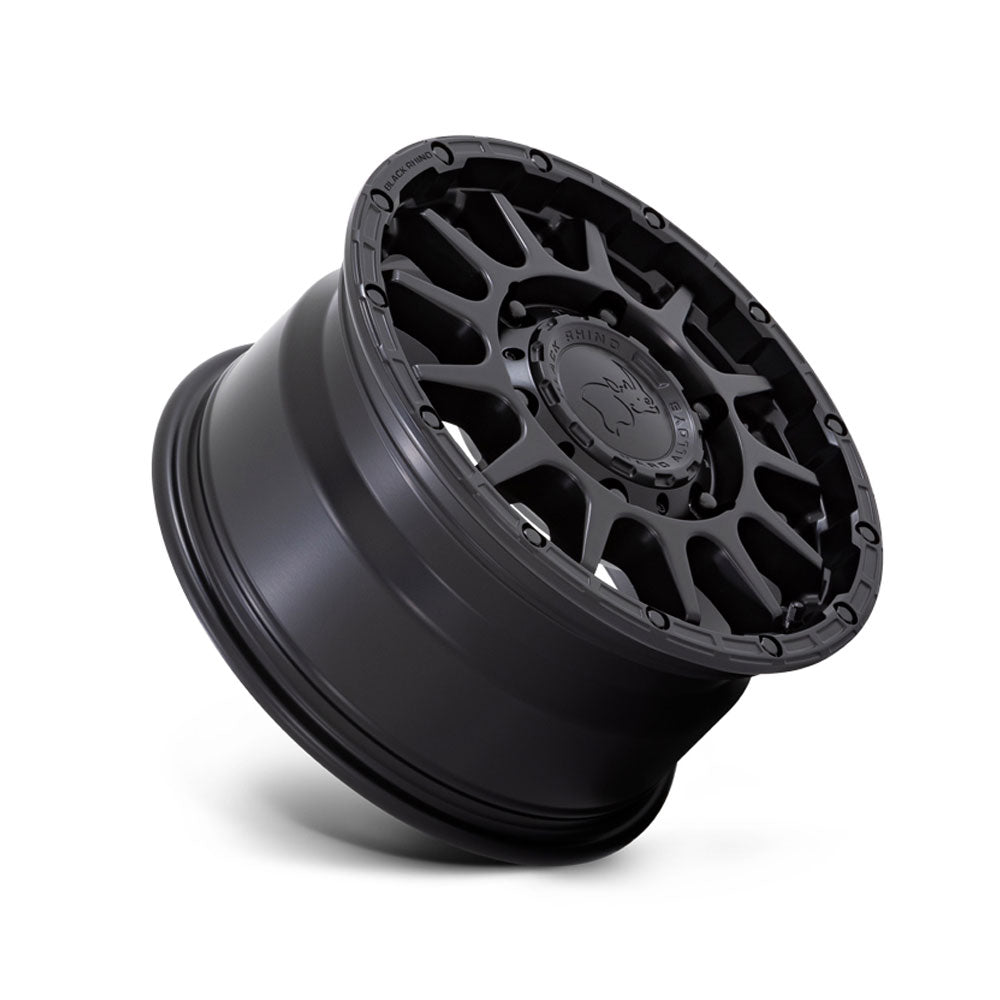

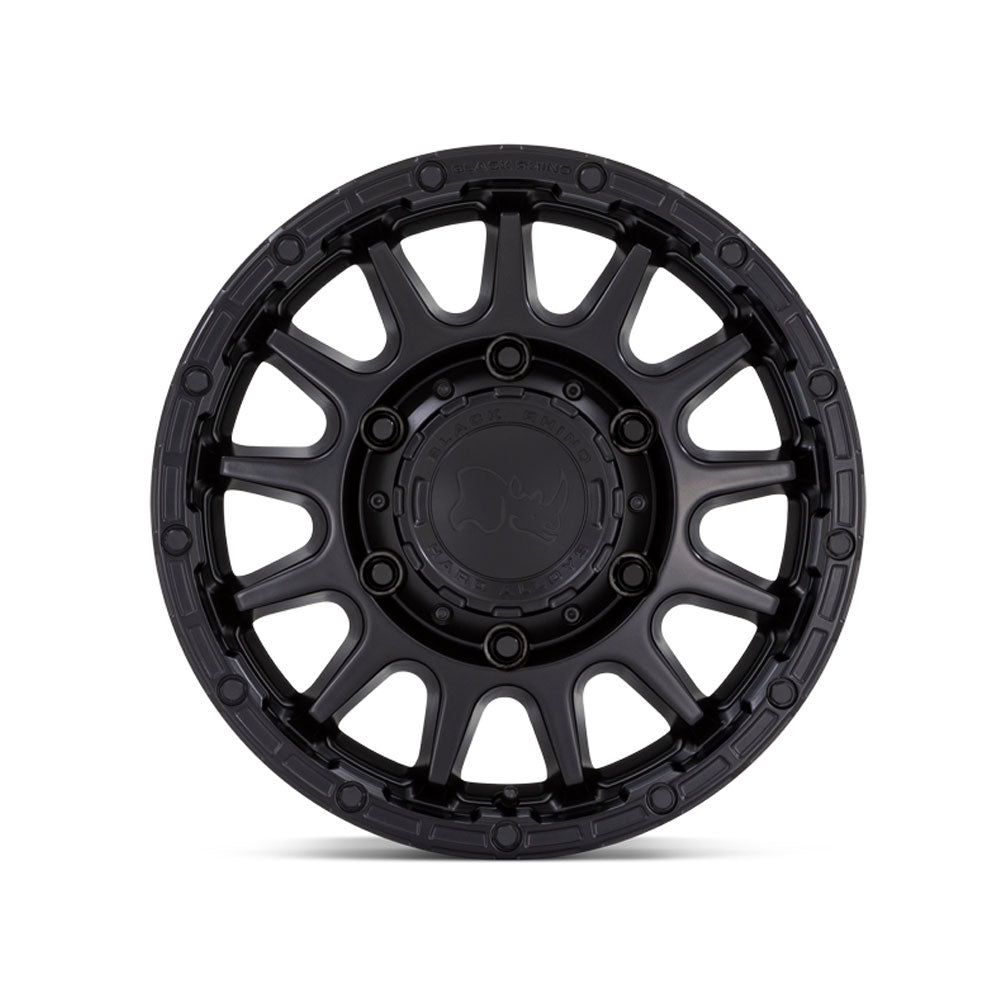

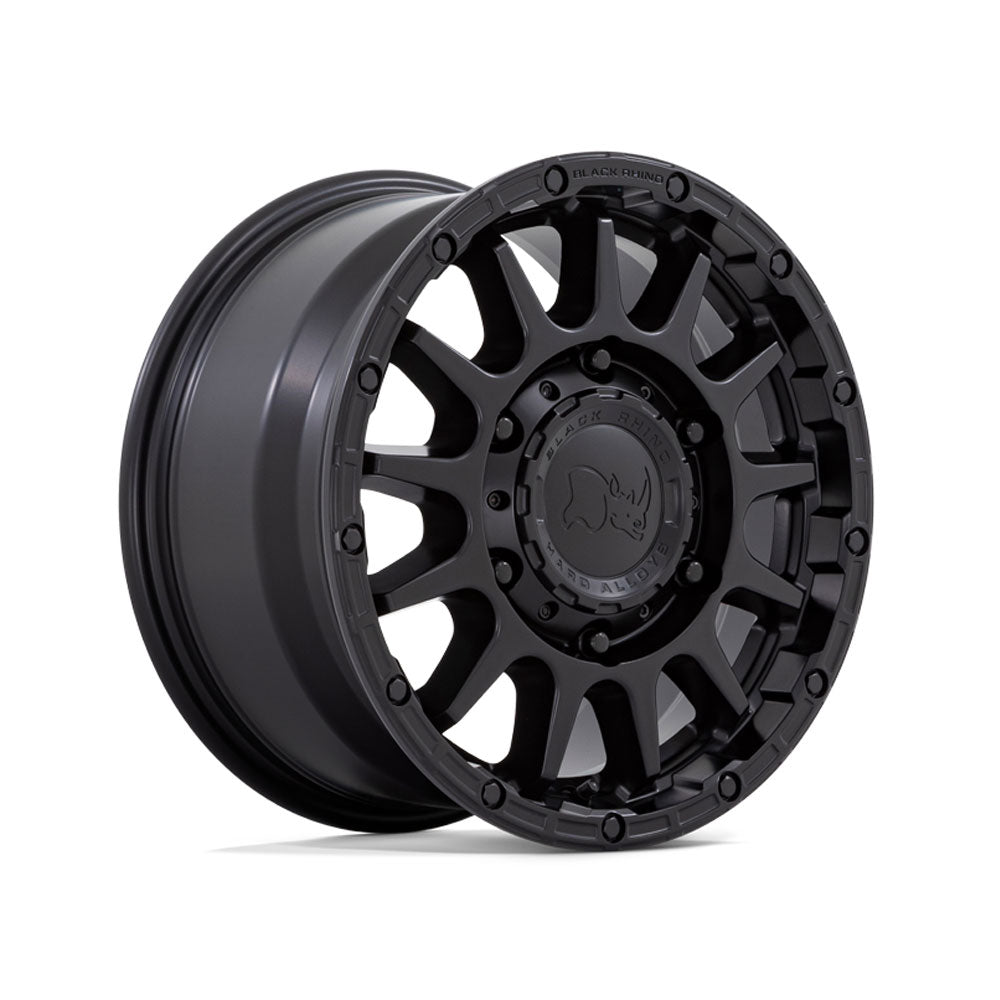

The Black Rhino Sequoia wheel is designed and engineered with off-road conversion camper vans in mind. The BR003 Sequoia features a clean multi-spoke design enclosed within a rugged simulated beadlock style. As with all heavy-duty Black Rhino van wheels, the Sequoia is load rated to 3,300 lbs/wheel.

The Sequoia wheel is Black Rhino's first offering for the 2020+ AWD Transit and intended to be an aggressive 16x8" +60 fitment. Black Rhino Sequoia for Ford Transit AWD requires a 2 inch lift, minor trimming, and a 245/75R16 tire is recommended.

---

Fit Notes:

• Requires a 2 inch lift, minor trimming, and a 245/75R16 tire is recommended
• Lug nuts not included

Vehicle Fit

2020+ Ford Transit (AWD)

Fit Notes: Requires longeraftermarket lug nuts (not included).

Specifications

Product Weight

32.0 lb

Dimensions

20 x 20 x 10.5

Vehicle Make

Ford

Vehicle Model

Transit

Vehicle Year

2026, 2025, 2024, 2023, 2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015

Back Spacing

6.86

Bolt Pattern

6x180

Bore

138.8

Brand

Black Rhino

Load Rating

3300 lbs

Size

16" x 8"

Vehicle Fit

Ford Transit AWD

Wheel Offset

60 mm
