22 Gallon Undercarriage Water Tank for Sprinter by Agile Offroad

SKU: SP-UC-22
Regular price $299.00
In stock

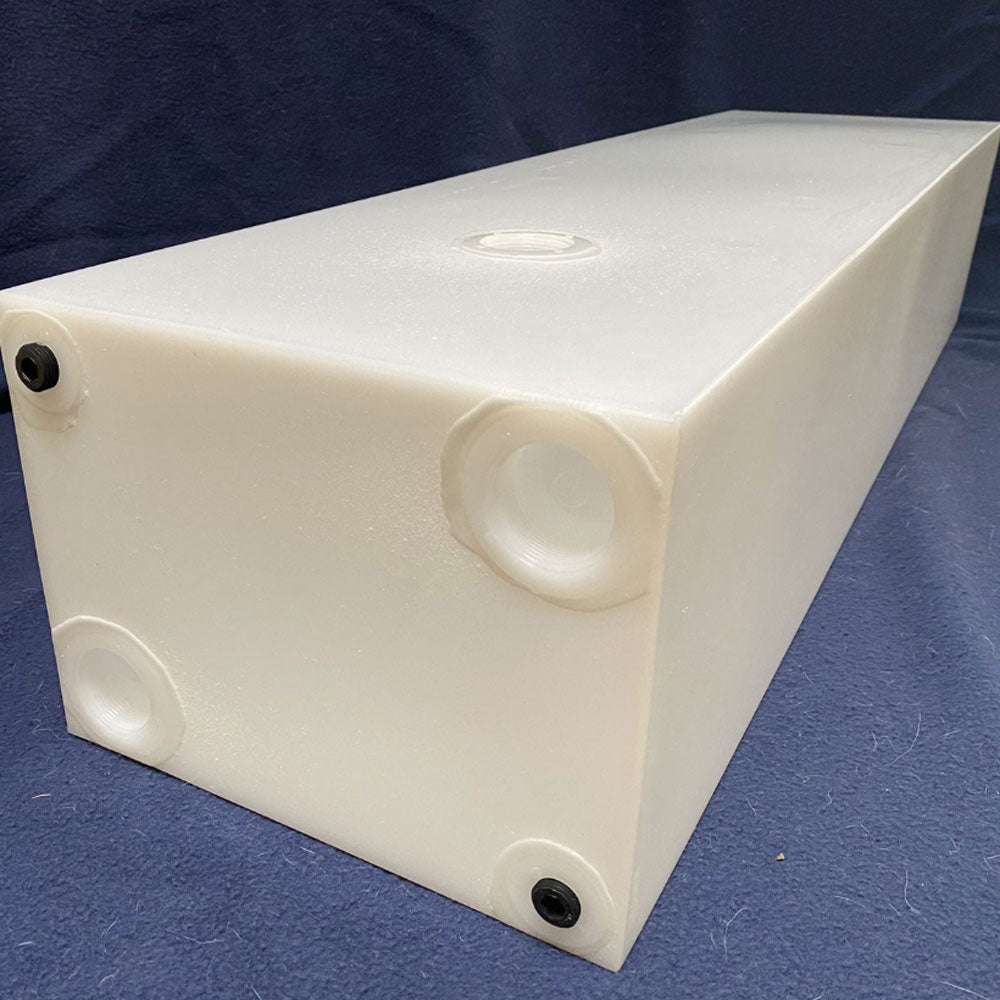

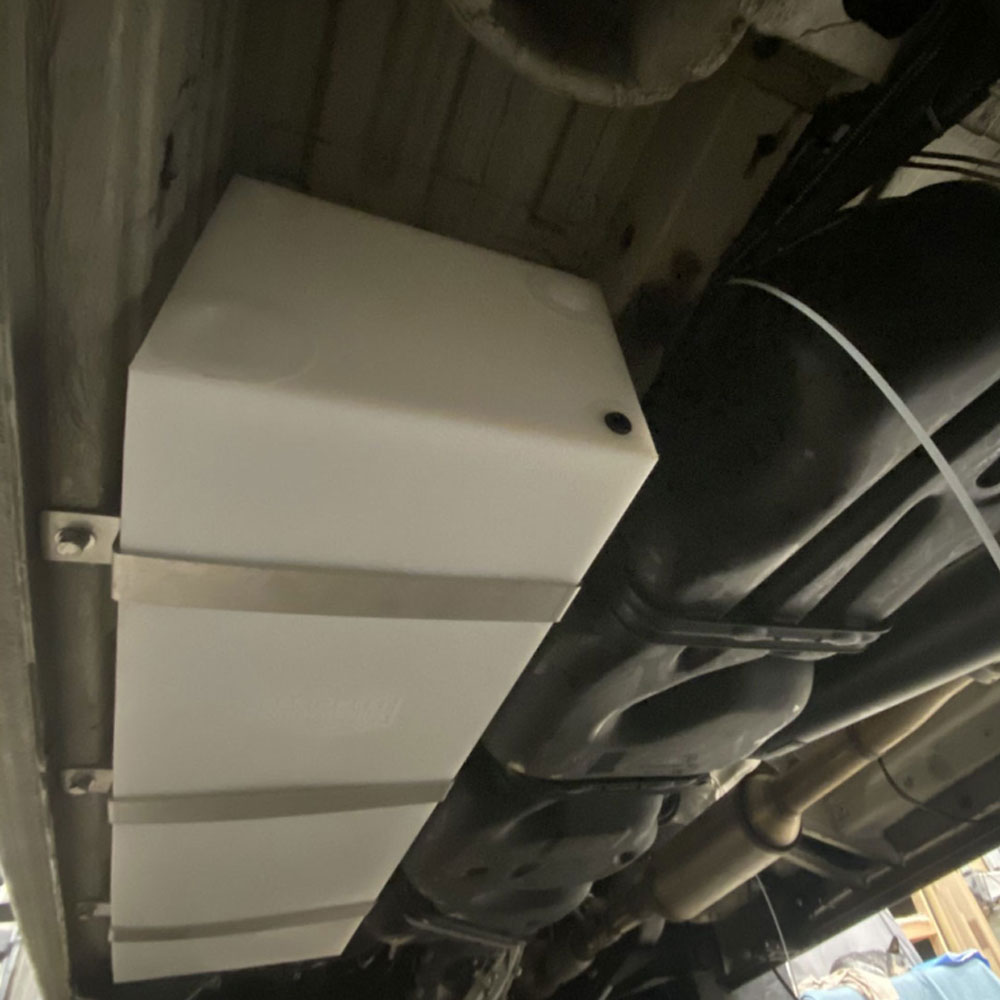

The 22 gallon Sprinter undercarriage tank is designed to fit under the van on the driver side next to the fuel tank. (3) Stainless steel laser cut straps, hardware and rivnuts are included. Tank fits Mercedes Sprinter 2007-present. It may fit other makes and models as well.

  • Fits 2007 – Newer Sprinter driver side next to the fuel tank.
  • Tank can be used for fresh or grey water
  • 20 Gallon Tank
  • Tank is designed not to be pressurised (I.e. Needs to be vented).

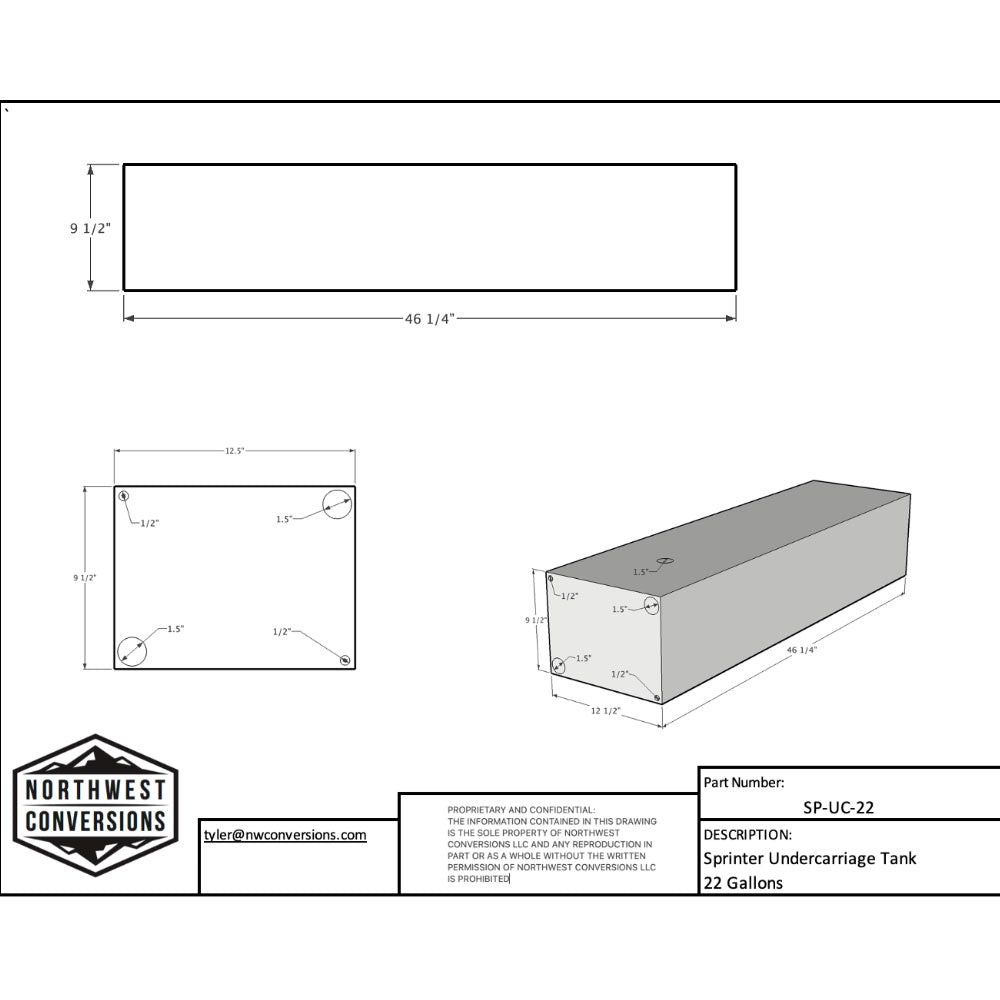

  • Overall dimensions: 46″L x 9.25″H x 12.25″W.
  • BPA Free, food grade plastic.
  • Tank has (2) 1.5″ NPT port and (2) 1/2″ NPT ports on end that will face the rear of van.
  • Tank has (1) 1.5″ NPT port on top. Port is 8.5″ back from end on center of the tank.

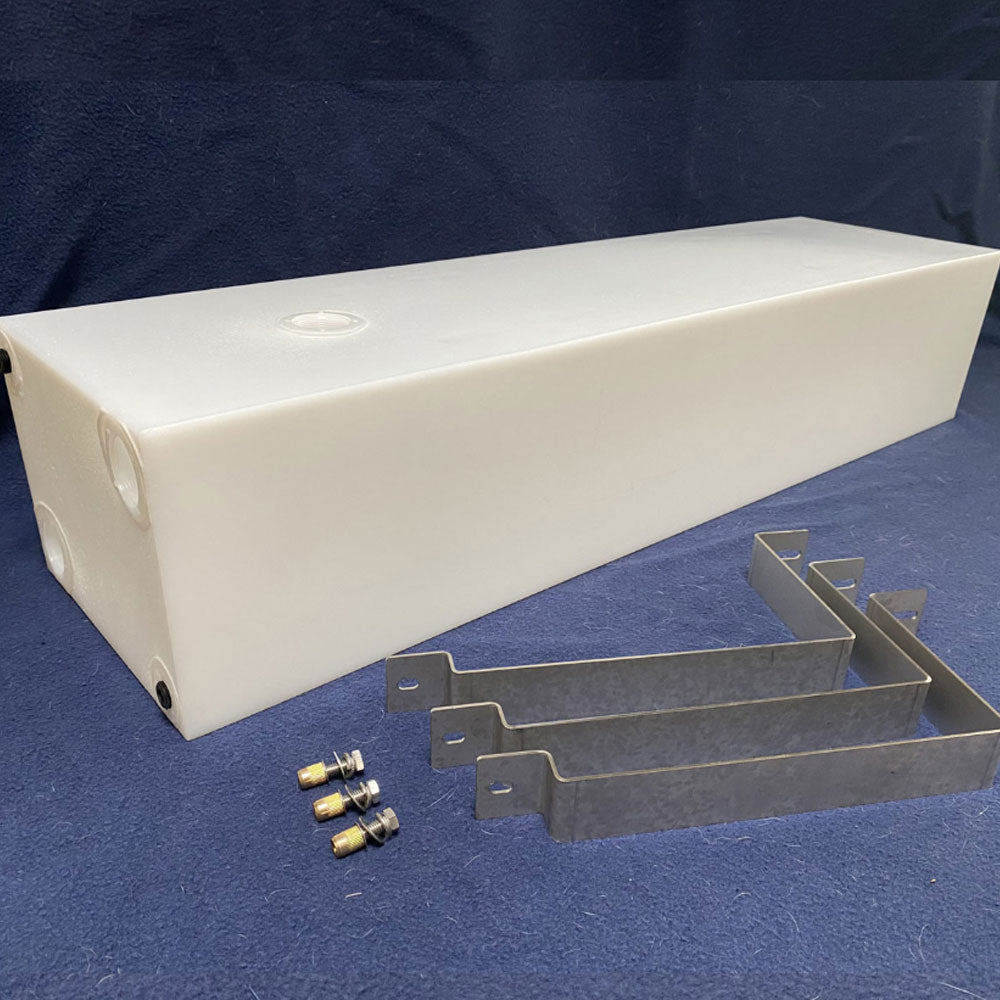

  • *(3) Stainless steel Brackets, Stainless steel 3/8″ hardware, and 3/8″ rivnuts included.
  • The tank straps are designed to use the (3) fuel tank strap mounting locations as well as drilling (3) new holes (17/32″ Drill bit) for the 3/8″ rivnuts next
  • to the pinch weld of the body.
  • This will require a rivnut tool. Tool not included

Made in the USA

Product Weight
22.0 lb
Dimensions
49 x 17 x 17
